Adjustable Levelling Arm

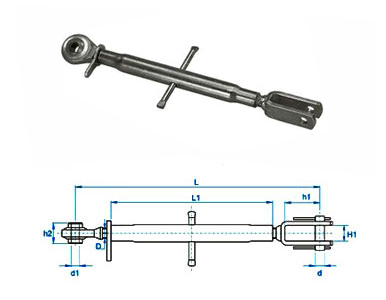

ADJUSTABLE LEVELLING ARM
ART. L (MIN) L (MAX) L1 D d H1 h1 d1 h2
MI-ALA1930 380 530 230 M24X3 18 24 72 19.0 44
MI-ALA1931 380 530 230 M24X3 18 24 72 22.1 35
MI-ALA1940 410 560 260 M24X3 18 24 72 19.0 44
MI-ALA1941 410 560 260 M24X3 18 24 72 22.1 35
MI-ALA1943 490 660 340 M24X3 16 24 72 22.1 35
MI-ALA1945 520 690 380 M24X3 16 24 72 22.1 35

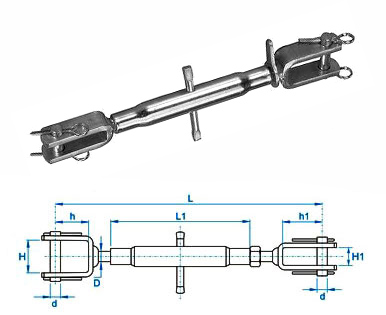

ADJUSTABLE LEVELLING ARM
ART. L (MIN) L (MAX) L1 D d H h H1 h1
MI-ALA1900 380 490 200 M22X2.5 18 30 60 24 72
MI-ALA1910 450 600 260 M24X3 18 40 70 24 72
MI-ALA1920 500 650 290 M27X3 18 40 70 24 72
TURN BUCKLE
ART. THREAD LENGTH
MI-BC 01 M16X2 140
MI-BC 02 M20X2.5 140
