PTO Pins/Shaft Pins

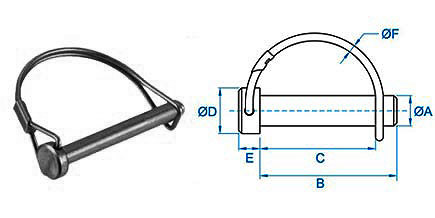

| SHAFT LOCKING PIN / PTO (ROUND) | ||||||
| ART. | A | B | C | D | E | F |
| SDIPTOR650 | 6 | 60 | 50 | 12 | 6 | 2.3 |
| SDIPTOR657 | 6 | 67 | 57 | 12 | 6 | 2.3 |
| SDIPTOR838 | 8 | 45 | 38 | 15 | 7 | 2.3 |
| SDIPTOR860 | 8 | 70 | 60 | 15 | 7 | 2.3 |
| SDIPTOR9557 | 9.5 | 67 | 57 | 16 | 7.5 | 2.3 |
| SDIPTOR1038 | 10 | 45 | 38 | 15 | 7 | 2.3 |
| SDIPTOR1060 | 10 | 70 | 60 | 15 | 8.50 | 2.3 |
| SDIPTOR1189 | 11 | 99 | 89 | 19 | 10 | 2.3 |

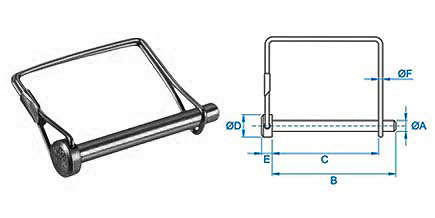

| SHAFT LOCKING PIN / PTO PIN (SQUARE) | ||||||
| ART. | A | B | C | D | E | F |
| SDIPTOS4538 | 4.5 | 46 | 38 | 10 | 5 | 2.3 |
| SDIPTOS657 | 6 | 67 | 57 | 12 | 6 | 2.3 |
| SDIPTOS863 | 8 | 70 | 63 | 15 | 7 | 2.3 |
| SDIPTOS1080 | 10 | 90 | 80 | 18 | 8 | 2.3 |
| SDIPTOS1267 | 12 | 75 | 67 | 20 | 10 | 2.3 |

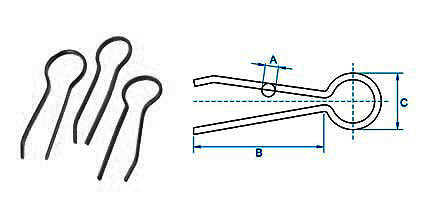

| CLIP PINS | |||
| ART. | A | B | C |
| SDICLPP315 | 3X1.5 | 38 | 17 |
| SDICLPP525 | 5X2.5 | 56 | 27 |
