Trailer Jacks

Jockey Wheel Parking Jack
ART. A Pipe Diameter Wheel Size Pipe Length B C D
MI-JWPJ01 35 160x43 220 310 100 465
MI-JWPJ02 42 200x50 195 390 120 590
MI-JWPJ03 48 200x50 195 390 120 590
MI-JWPJ04 48 250x85 175 420 150 625
MI-JWPJ05 60 255x80 400 430 150 720
MI-JWPJ06 60 220x70 500 560 350 1060

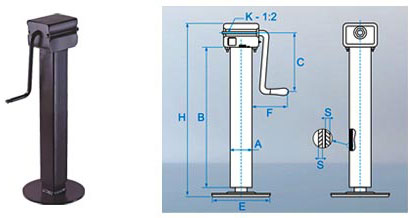

Parking Jack Heavy Type With Reduction Gear And Lateral Handle
ART. Dim. A Dim. B Dim. C E F H S STROKE Static Cap.
MI-PJ001HWG 70 500 220 220 185 620 3 400 3000
MI-PJ002HWG 70 600 220 220 185 720 3 500 3000
MI-PJ003HWG 70 700 220 220 185 820 3 500 3000
MI-PJ004HWG 70 800 220 220 185 920 3 500 3000
MI-PJ005HWG 80 500 220 220 180 620 3 400 3000
MI-PJ006HWG 80 600 220 220 180 720 3 500 3000
MI-PJ007HWG 80 800 220 220 180 920 3 500 3000

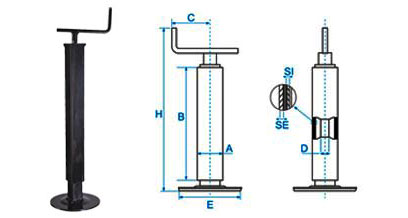

Parking Jack “Light Type”
ART. Dim. A Dim. B Dim. C E H SE SI D STROKE STATIS CAP.
MI-PJ001L 40 360 115 95 500 2 2 18 250 400
MI-PJ002L 60 660 115 160 840 3 2 18 450 700
MI-PJ003L 50 460 115 160 610 3 2 18 250 600
MI-PJ004L 50 560 115 160 710 3 2 18 350 600
MI-PJ005L 60 460 115 160 610 3 2 18 350 700
MI-PJ006L 60 560 115 160 710 3 2 18 450 700
MI-PJ007L 70 460 180 160 640 3 3 22 350 1200
MI-PJ008L 70 660 180 160 840 3 3 22 500 1200
MI-PJ009L 70 660 180 160 840 3 3 22 500 1200
