U-Bolts & Shackles

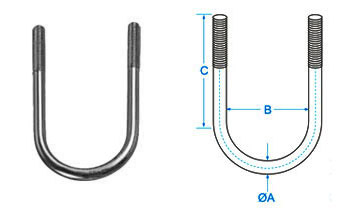

| U-bolts | |||
| ART. | DIA.ØA | DIM.B | DIM.C |
| MI-UBOL 01 | 7/16" | 2" | 6" |
| MI-UBOL 02 | 7/16" | 2-7/8" | 7-3/4" |
| MI-UBOL 03 | 7/16" | 3" | 7-1/2" |
| MI-UBOL 04 | 1/2" | 2-1/2" | 8-1/4" |
| MI-UBOL 05 | 1/2" | 2-7/8" | 7" |
| MI-UBOL 06 | 1/2" | 3" | 8" |
| MI-UBOL 07 | 9/16" | 3" | 8-1/4" |
| MI-UBOL 08 | 9/16" | 3-1/4" | 8" |
| MI-UBOL 09 | 9/16" | 3-3/8" | 12" |
| MI-UBOL 10 | 5/8" | 3" | 8-1/2" |
| MI-UBOL 11 | 5/8" | 3-1/4" | 8-1/4" |
| PUBOL 12 | 5/8" | 3-1/4" | 12" |

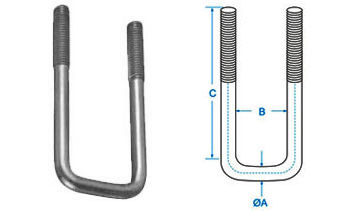

| U-bolts | |||
| ART. | DIA.ØA | DIM.B | DIM.C |
| MI-UBOL13 | 3/8" | 2-1/2" | 2-1/2" |
| MI-UBOL14 | 3/8" | 7" | 7-1/2" |
| MI-UBOL15 | 1/2" | 3" | 4" |
| MI-UBOL16 | 5/8" | 4" | 4" |
| MI-UBOL17 | 5/8" | 4" | 5-1/2" |
| MI-UBOL18 | 5/8" | 4" | 7-1/2" |
| MI-UBOL19 | 5/8" | 5" | 8-1/2" |
| MI-UBOL20 | 5/8" | 6" | 8" |
| MI-UBOL21 | 5/8" | 7" | 5" |
| MI-UBOL22 | 5/8" | 7" | 7" |
| MI-UBOL23 | 5/8" | 7" | 8-1/2" |
| MI-UBOL24 | 3/4" | 5" | 7" |
| MI-UBOL25 | 3/4" | 7" | 8-1/2" |
| MI-UBOL26 | 3/4" | 7" | 7" |

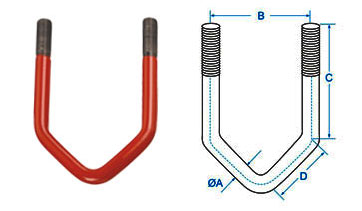

| U-bolts | ||||
| ART. | DIA.ØA mm | DIM.B mm | DIM.C mm | DIM.D mm |
| MI-UBOL27 | 11 | 70 | 37 | 42 |
| MI-UBOL28 | 12.8 | 82 | 39 | 49 |
| MI-UBOL29 | 11 | 90 | 30 | 56 |
| MI-UBOL30 | 15 | 96 | 52 | 60.5 |
| Drop Lock Pin Weld On Type | ||
| ART. | DIA. L mm | DIM. H mm |
| MI-DLP01 | 13 | 70 |
| Drop Lock Pin With Long Screw | |||
| ART. | DIA. L mm | DIM. H mm | Thread |
| MI-DLP02 | 35 | 70 | 1/2” UNF |
| MI-DLP03 | 76 | 70 | 1/2” UNF |
| MI-DLP04 | 38 | 50 | MB x 1.25 |
| MI-DLP05 | 20 | 50 | MB x 1.25 |
