Linch Pins

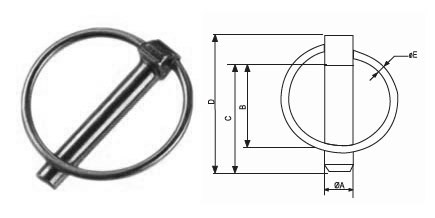

LINCH PIN
ART. A B C D E
SDI-LP001 4.5 28.6 35 44 3
SDI-LP002 4.5 33 40 48 3
SDI-LP003 6 36.5 45 54 3.2
SDI-LP004 6 60 70 80 3.5
SDI-LP005 7 36.5 45 55 3.3
SDI-LP006 8 36.5 45 54 3.3
SDI-LP007 8 60 70 80 3.5
SDI-LP008 9 36.5 45 56 3.3
SDI-LP009 10 36.5 45 56 3.5
SDI-LP010 10 42 51 62 3.5
SDI-LP011 10 36.5 45 56 3.5
SDI-LP012 11 39 51 61 3.5
SDI-LP013 12 36.5 45 56 3.5

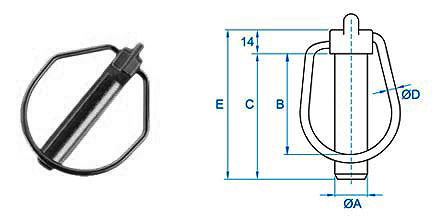

LINCH PIN DIN 11023
ART. A B C D E
SDI-LPDIN4532 4.5 32 25 31.00 2.50
SDI-LPDIN 5542 5.5 42 32 44.80 3.60
SDI-LPDIN7542 7.5 42 32 44.80 3.60
SDI-LPDIN9545 9.5 45 32 44.80 3.60
SDI-LPDIN1145 11 45 32 44.80 3.60
SDI-LPDIN1155 11 55 45 52.00 4.00
SDI-LPDIN1660 16 60 45 52.00 4.00

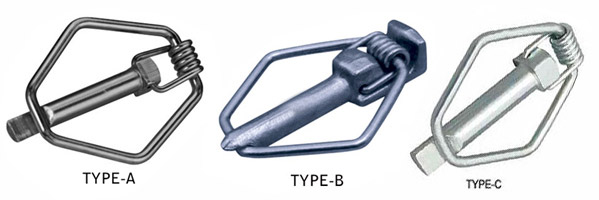

SPRING LINCH PIN
ART. DIA TYPE
SDI-SLP 85 8.5 A
SDI-SLP 105 10.5 A
SDI-SLP 11 11 B
SDI-SLP 155 15.5 C

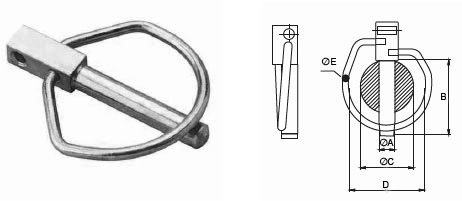

PIPE LINCH PIN
ART. A B C D
SDI-PLP04540 4.5 40 18 3
SDI-PLP0632 6 32 18 3
SDI-PLP0640 8 40 18 3
SDI-PLP0645 8 45 22 3
SDI-PLP0840 8 40 18 3
SDI-PLP0845 8 45 22 3
SDI-PLP0850 8 50 25 3
SDI-PLP0860 8 60 28 3
SDI-PLP1040 10 40 25 3
SDI-PLP1050 10 50 25 3
SDI-PLP1060 10 60 28 3
SDI-PLP1070 10 70 28 3

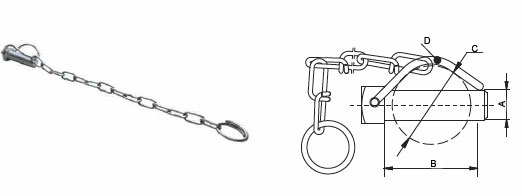

SQUARE HEAD LINCH PIN WITH CHAIN FOR PIPE
ART. A B C D
SDI-PLP1248 12 48 44 4
SDI-PLP1448 14 48 44 4
SDI-PLP1650 16 50 44 4
SDI-PLP1960 19 60 48 4
Forged Linch Pins
ART. A B C D E
SDI-PLP1148 11 48 52 4 66
SDI-PLP1556 15 56 60 4 74

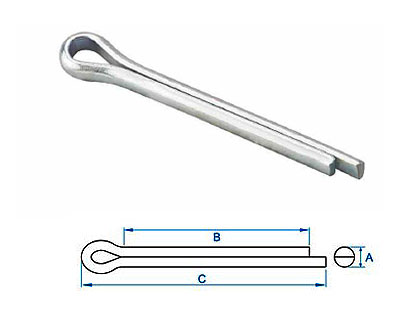

PPLit Pins
ART. A B C
SDI1620 1.6 20 28
SDI1625 1.6 25 33
SDI2020 2 20 28
SDI2025 2 25 33
SDI2028 2 28 35
SDI2032 2 32 40
SDI2040 2 40 50
SDI2520 2.5 20 28
SDI2540 2.5 40 50
SDI3225 3.2 25 35
SDI3240 3.2 40 50
SDI4025 4 25 35
SDI4032 4 32 45
SDI4036 4 36 48
SDI5050 5 50 63
SDI5070 5 70 85
SDI6350 6.3 50 64
SDI6370 6.3 70 85
SDI6380 6.3 80 98
SDI8063 8 63 87
SDI8080 8 80 104
SDI80100 8 100 124
SDI80125 8 125 150
SDI1063 10 63 91
SDI10125 10 125 153
SDI13125 15 125 160
SDI13140 13 140 175
