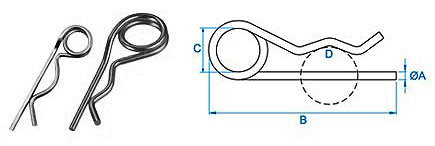

Hair Pin
HAIR PIN | ||||
ART. | A | B | C | D |
MI-HP 20044 | 2 | 44 | 11 | 10-12 |
MI-HP 20051 | 2 | 51 | 10 | 10-12 |
MI-HP 20059 | 2 | 59 | 13 | 10-12 |
MI-HP 25046 | 2.5 | 46 | 10 | 11-13 |
MI-HP 25062 | 2.5 | 62 | 14 | 11-13 |
MI-HP 30052 | 3 | 52 | 13 | 12-16 |
MI-HP 30065 | 3 | 65 | 13 | 12-16 |
MI-HP 30070 | 3 | 70 | 13 | 12-16 |
MI-HP 35071 | 3.5 | 71 | 18 | 16-30 |
MI-HP 35084 | 3.5 | 84 | 18 | 16-30 |
MI-HP 40076 | 4 | 76 | 18 | 16-30 |
MI-HP 40088 | 4 | 88 | 18 | 16-30 |
MI-HP 40108 | 4 | 108 | 26 | 14-30 |
MI-HP 45090 | 4.5 | 93 | 20 | 16-30 |
MI-HP 50100 | 5 | 100 | 24 | 25-35 |
MI-HP 50106 | 5 | 106 | 24 | 25-35 |
MI-HP 50116 | 5 | 116 | 24 | 20-35 |
MI-HP 60103 | 6 | 103 | 30 | 28-45 |
MI-HP 60114 | 6 | 114 | 30 | 28-45 |
MI-HP 60120 | 6 | 120 | 30 | 28-45 |
MI-HP 60130 | 6 | 130 | 36 | 28-45 |
MI-HP 70115 | 7 | 115 | 25 | 25-38 |
MI-HP 70163 | 7 | 163 | 30 | 30-45 |
MI-HP 80098 | 8 | 105 | 52 | 40-45 |
MI-HP 80156 | 8 | 156 | 40 | 30-45 |
MI-HP 80187 | 8 | 187 | 40 | 45-60 |
MI-HP 90162 | 9 | 162 | 40 | 45-60 |
MI-HP 100162 | 10 | 162 | 40 | 45-60 |
HAIR PIN (Double) | ||||
ART. | A | B | C | D |
MI-HPD2065 | 2 | 65 | 9 | 10-12 |
MI-HPD3071 | 3 | 71 | 15 | 12-16 |
MI-HPD4077 | 4 | 77 | 18 | 16-30 |
MI-HPD4093 | 4 | 93 | 22 | 17-24 |
MI-HPD5108 | 5 | 108 | 24 | 17-28 |
MI-HPD5116 | 5 | 116 | 22 | 17-28 |
MI-HPD5200 | 5 | 200 | 22 | 25-32 |
MI-HPD6120 | 6 | 120 | 30 | 28-42 |
MI-HPD6143 | 6 | 143 | 30 | 28-42 |
MI-HPD7162 | 7 | 162 | 30 | 30-45 |
MI-HPD8145 | 8 | 155 | 30 | 45-60 |
MI-HPD8162 | 8 | 162 | 45 | 45-60 |
HAIR PIN DIN 11024 | ||||
ART. | A | B | C | D |
MI-HPD22554 | 2.25 | 54 | 20 | 9-11 |
MI-HPD28061 | 2.80 | 61 | 20 | 11~14 |
MI-HPD36078 | 3.60 | 78 | 20 | 14~20 |
MI-HPD45097 | 4.50 | 97 | 25 | 20~26 |
MI-HPD560115 | 5.60 | 115 | 25 | 26~34 |
MI-HPD630146 | 6.30 | 146 | 30 | 35~45 |
MI-HPD700169 | 7.00 | 169 | 30 | 45~56 |
